With a legacy in ship design and construction dating back to 1820, Kockum Sonics offers a wide range of innovative products tailored for marine and industrial applications. This long history has shaped the company’s commitment to quality and technological advancement.Diverse Product Portfolio
They provides solutions that include acoustic signaling systems, cleaning equipment, level gauging systems, and advanced loading computers. All products are based on cutting-edge information technology to ensure maximum efficiency and reliability across marine and industrial sectors.Contact Us for More Information
If you have any questions or require spare parts for your Kockum Sonics system. contact us.

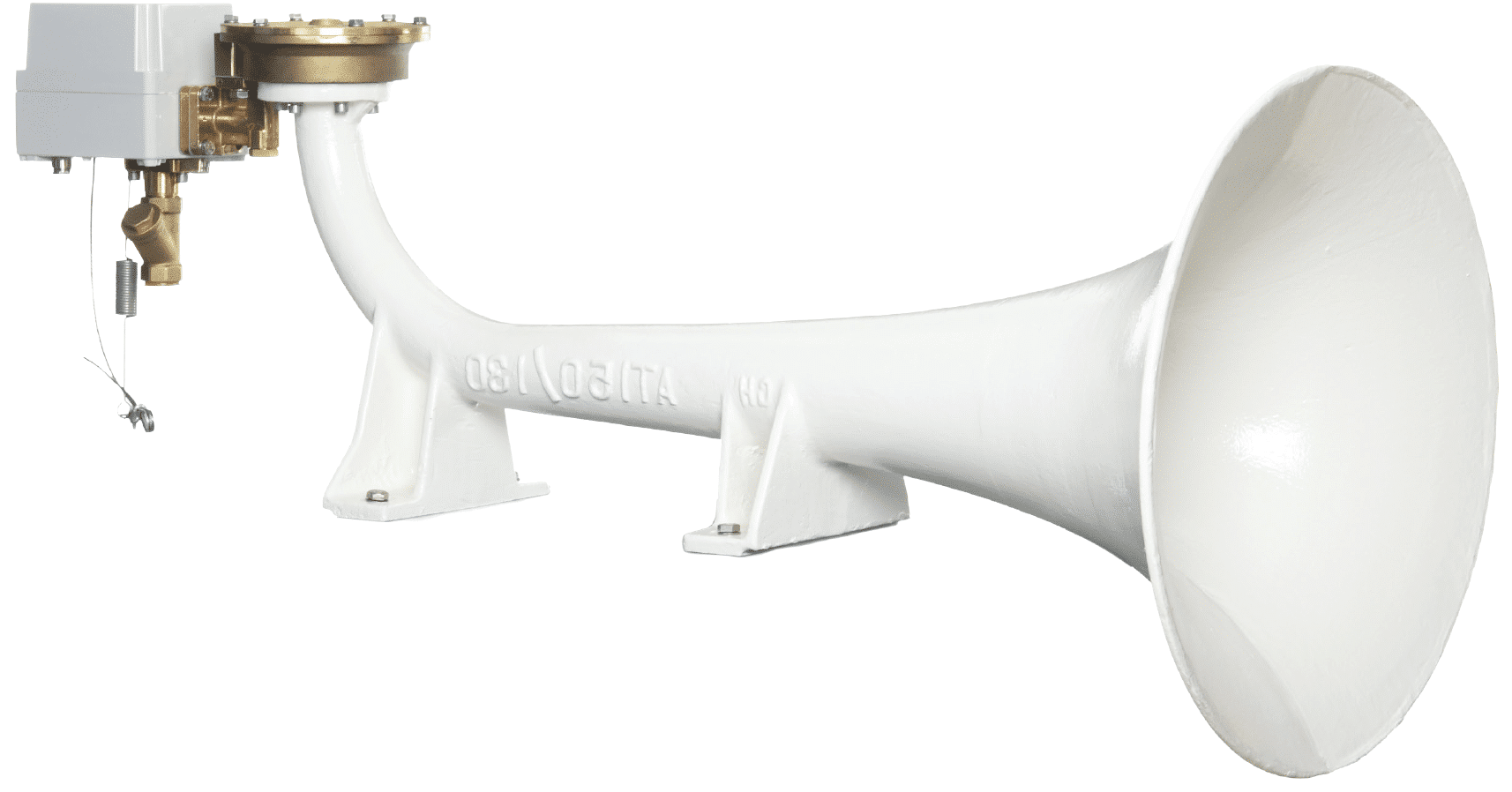

AT 150/130 air whistle, suitable for vessels with a LOA 75m till 200m.
Regulations Before and After COLREG 1972
Before “COLREG 1972” (International Regulations for Preventing Collisions at Sea), low-pitched tones were often used for smaller vessels. However, the principle of reserving low tones for large vessels was not strictly enforced. The IMO regulations now reserve very low tones exclusively for the largest ships. For middle-sized and smaller vessels, there are broader frequency options available.
Signal Preferences and Frequency Range
IMO regulations prioritize signals that maintain audibility even at a distance. Vessels between 75 and 200 meters (246 – 656 feet) should use whistles with frequencies ranging between 130 and 350 Hz. These frequencies ensure effective communication and compliance with maritime safety standards.
Installation Instructions for AT 150/130
Mounting the AT 150/130
Secure the AT 150/130 whistle with four M16 bolts to an outrigger or similar construction. Ensure the structure is stable to prevent any operational issues.
Cleaning the Supply Pipe
Before connecting the supply pipe to the whistle, blow the pipe thoroughly clean. This step is crucial to avoid any functional troubles caused by debris or contaminants in the pipe.
Installing a Primary Filter
If the pipeline above deck exceeds 100 meters (328 feet), install a primary FILTER TP 15/2 at the base of the mast. This filter protects the whistle from water condensate and rust particles, ensuring reliable operation.
Maintaining the Filter
Regular maintenance is essential for ensuring optimal performance. To begin with, it is recommended to drain the filter approximately once a month. By doing so, you can effectively prevent blockages while also maintaining the integrity of the signaling system.
Valve Unit Specifications
The VALVE UNIT TV 784 is designed for efficient air flow, featuring thermostatic heating, exchangeable choke flanges, and filters. It includes two coils for normal and emergency operation, as well as a lanyard, providing reliable functionality.
Contact Us for More Information
If you have any questions or require spare parts for your Kockum Sonics system.
Technical Data
- Frequency: 130 Hz
- Sound Pressure Level (1m):
Total: 148 dB
1/3 octave IMO limit: 138 dB - Air consumption: 35 – 45 I/s
- Air supply pressure with choke regulation:
0,6 – 3 MPa (6 – 30 bar) - Electric power:
Thermostat heating: 24 W
Valve: 27 W - Weight: 65 kg
- For wiring diagram: see Valve Unit TV 784.

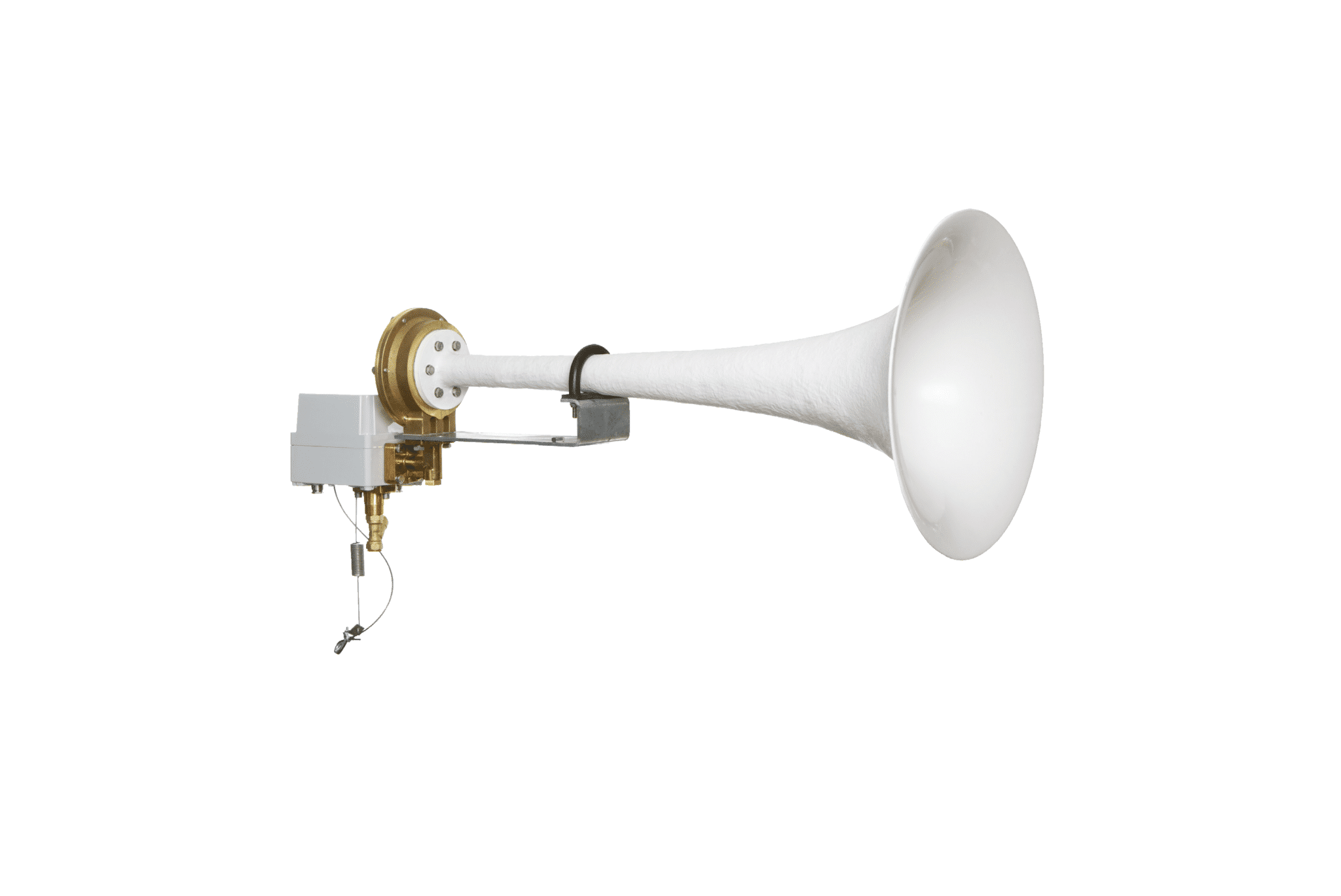

AT 150/165 air whistle, suitable for vessels with a LOA 75m till 200m.
Regulations Before and After COLREG 1972
Before “COLREG 1972” (International Regulations for Preventing Collisions at Sea), low-pitched tones were often used for smaller vessels. However, the principle of reserving low tones for large vessels was not strictly enforced. The IMO regulations now reserve very low tones exclusively for the largest ships. For middle-sized and smaller vessels, there are broader frequency options available.
AT 150/165
Signal Preferences and Frequency Range
IMO regulations prioritize signals that maintain audibility even at a distance. Vessels between 75 and 200 meters (246 – 656 feet) should use whistles with frequencies ranging between 130 and 350 Hz. These frequencies ensure effective communication and compliance with maritime safety standards.
Installation Instructions for AT 150/165
Mounting the AT 150/165
Secure the AT 150/165 whistle with four M10 bolts to an outrigger or similar construction. Ensure the structure is stable to prevent any operational issues.
Cleaning the Supply Pipe
Before connecting the supply pipe to the whistle, blow the pipe thoroughly clean. This step is crucial to avoid any functional troubles caused by debris or contaminants in the pipe.
Installing a Primary Filter
If the pipeline above deck exceeds 100 meters (328 feet), install a primary FILTER TP 15/2 at the base of the mast. This filter protects the whistle from water condensate and rust particles, ensuring reliable operation.
Maintaining the Filter
Regular maintenance is essential for optimal performance. Drain the filter approximately once a month to prevent blockages and maintain the integrity of the signaling system.
Valve Unit Specifications
The VALVE UNIT TV 784 is designed for efficient air flow, featuring thermostatic heating, exchangeable choke flanges, and filters. It includes two coils for normal and emergency operation, as well as a lanyard, providing reliable functionality.
Contact Us for More Information
If you have any questions or require spare parts for your Kockum Sonics system.
Technical Data
- Frequency: 165 Hz
- Sound Pressure Level (1m):
Total: 148 dB
1/3 octave IMO limit: 138 dB - Air consumption: 25 – 35 I/s
- Air supply pressure with choke regulation:
0,6 – 3 MPa (6 – 30 bar) - Electric power:
Thermostat heating: 24 W
Valve: 8-15 W - Weight: 14 kg
- For wiring diagram: see Valve Unit TV 784.

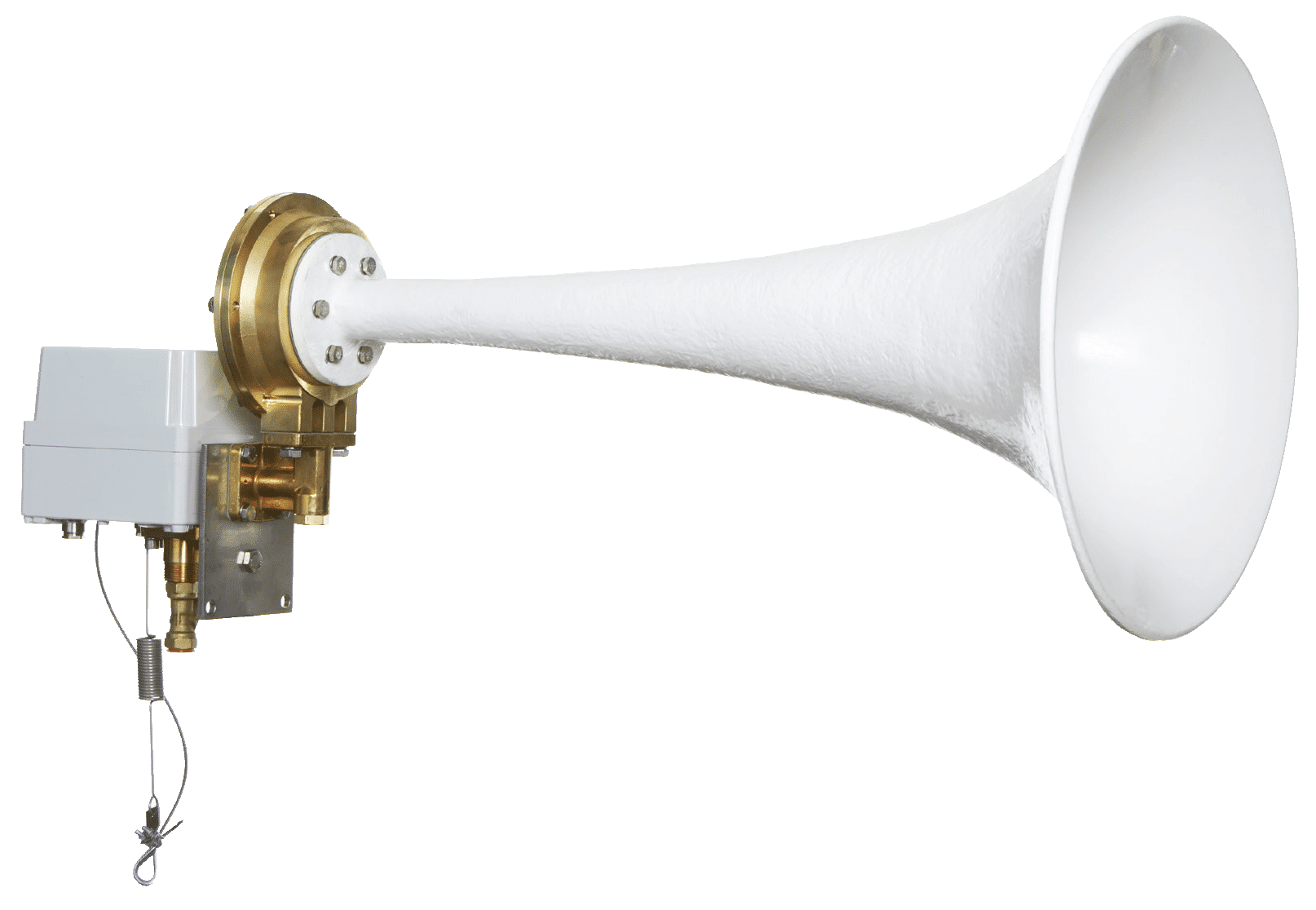

AT 150/200 air whistle, suitable for vessels with a LOA 75m till 200m.
Regulations Before and After COLREG 1972
Before “COLREG 1972” (International Regulations for Preventing Collisions at Sea), low-pitched tones were often used for smaller vessels. However, the principle of reserving low tones for large vessels was not strictly enforced. The IMO regulations now reserve very low tones exclusively for the largest ships. For middle-sized and smaller vessels, there are broader frequency options available.
Signal Preferences and Frequency Range
IMO regulations prioritize signals that maintain audibility even at a distance. Vessels between 75 and 200 meters (246 – 656 feet) should use whistles with frequencies ranging between 130 and 350 Hz. These frequencies ensure effective communication and compliance with maritime safety standards.
Installation Instructions for AT 150/200
Mounting the AT 150/200
Secure the AT 150/200 whistle with four M10 bolts to an outrigger or similar construction. Ensure the structure is stable to prevent any operational issues.
Cleaning the Supply Pipe
Before connecting the supply pipe to the whistle, blow the pipe thoroughly clean. This step is crucial to avoid any functional troubles caused by debris or contaminants in the pipe.
Installing a Primary Filter
If the pipeline above deck exceeds 100 meters (328 feet), install a primary FILTER TP 15/2 at the base of the mast. This filter protects the whistle from water condensate and rust particles, ensuring reliable operation.
Maintaining the Filter
Regular maintenance is essential for optimal performance. Drain the filter approximately once a month to prevent blockages and maintain the integrity of the signaling system.
Valve Unit Specifications
The VALVE UNIT TV 784 is designed for efficient air flow, featuring thermostatic heating, exchangeable choke flanges, and filters. It includes two coils for normal and emergency operation, as well as a lanyard, providing reliable functionality.
Contact Us for More Information
If you have any questions or require spare parts for your Kockum Sonics system.
Technical Data
- Frequency: 200 Hz
- Sound Pressure Level (1m):
Total: 148 dB
1/3 octave IMO limit: 138 dB - Air consumption: 20 – 30 I/s
- Air supply pressure with choke regulation:
0,6 – 3 MPa (6 – 30 bar) - Electric power:
Thermostat heating: 24 W
Valve: 27 W - Weight: 12,5 kg
- For wiring diagram: see Valve Unit TV 784

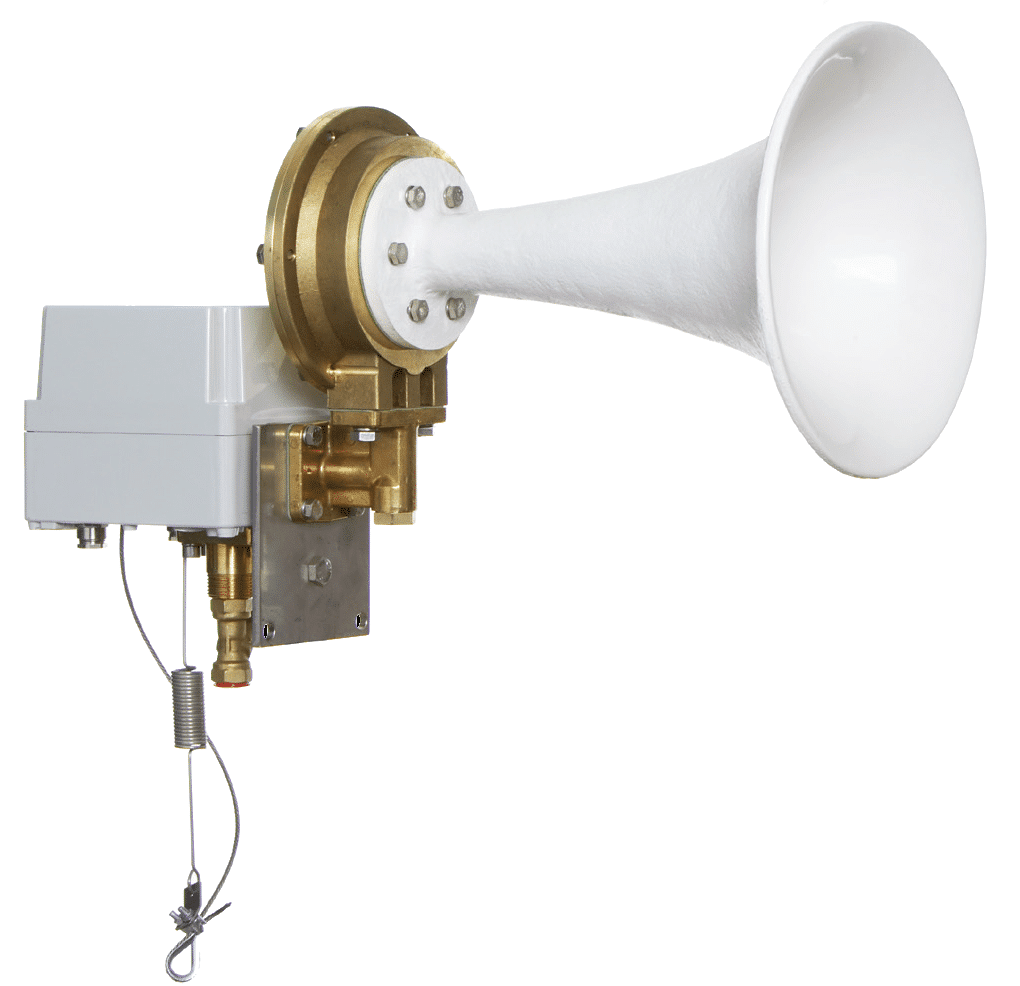

AT 150/330 air whistle, suitable for vessels with a LOA 75m till 200m
Regulations Before and After COLREG 1972
Before “COLREG 1972” (International Regulations for Preventing Collisions at Sea), low-pitched tones were often used for smaller vessels. However, the principle of reserving low tones for large vessels was not strictly enforced. The IMO regulations now reserve very low tones exclusively for the largest ships. For middle-sized and smaller vessels, there are broader frequency options available.
Signal Preferences and Frequency Range
IMO regulations prioritize signals that maintain audibility even at a distance. Vessels between 75 and 200 meters (246 – 656 feet) should use whistles with frequencies ranging between 130 and 350 Hz. These frequencies ensure effective communication and compliance with maritime safety standards.
Installation Instructions for AT 150/330
Mounting the AT 150/330
Secure the AT 150/330 whistle with four M10 bolts to an outrigger or similar construction. Ensure the structure is stable to prevent any operational issues.
Cleaning the Supply Pipe
Before connecting the supply pipe to the whistle, blow the pipe thoroughly clean. This step is crucial to avoid any functional troubles caused by debris or contaminants in the pipe.
Installing a Primary Filter
If the pipeline above deck exceeds 100 meters (328 feet), install a primary FILTER TP 15/2 at the base of the mast. This filter protects the whistle from water condensate and rust particles, ensuring reliable operation.
Maintaining the Filter
Regular maintenance is essential for optimal performance. Drain the filter approximately once a month to prevent blockages and maintain the integrity of the signaling system.
Valve Unit Specifications
The VALVE UNIT TV 784 is designed for efficient air flow, featuring thermostatic heating, exchangeable choke flanges, and filters. It includes two coils for normal and emergency operation, as well as a lanyard, providing reliable functionality.
Contact Us for More Information
If you have any questions or require spare parts for your Kockum Sonics system.
Technical Data
- Frequency: 330 Hz
- Sound Pressure Level (1m):
Total: 148 dB
1/3 octave IMO limit: 138 dB - Air consumption: 20 – 30 I/s
- Air supply pressure with choke regulation:
0,6 – 3 MPa (6 – 30 bar) - Electric power:
Thermostat heating: 24 W
Valve: 27 W - Weight: 11,5 kg
- For wiring diagram: see Valve Unit TV 784
Kockum Sonics / Inland Shipping / Vessel LOA 20m - 75m / Vessel LOA 75m - 200m / Whistles & Tyfons
part no.
AT 150/330 air whistle, designed to meet regulations Zone 2 German inland waterways.
Powerful IMO-Compliant Air Horn for Inland Waters
The AT150/330 is a powerful air horn designed to meet IMO maritime regulations for inland waterways, including Zone 2 waterways and German sea arms like the Ems, Dollard, Weser, and Elbe. This air horn is required for vessels over 20 meters in length, with a sound level of 132 dB at 1 meter and a base frequency between 130 and 350 Hz. AT 150/330 zone 2
IMO Requirements for Zone 2 Waterways
In Germany, Zone 2 waterways require an air horn that complies with IMO regulations. Ships over 20 meters must have an air horn that delivers the specified sound level and frequency to ensure safety and proper signaling. The AT150/330 meets these stringent standards, offering reliable performance under varying conditions.
Easy Installation and Customization
The air horn comes with a specially designed bracket, allowing it to be easily installed and adjusted in any direction to fit different vessel setups. Brackets are available in durable aluminum and stainless steel to suit various installation environments.
Additionally, the air connection is highly customizable, providing flexibility for both the horn and the air control unit to meet specific requirements. This makes the AT150/330 adaptable to various ship systems.
Certified for German Regulations
To ensure compliance with German regulations for Zone 2 waterways, the AT150/330 comes fully BSH certified. Its combination of power, ease of installation, and regulatory approval makes it the ideal choice for ships navigating these areas.
Contact Us for More Information
If you have any questions or require spare parts for your Kockum Sonics system.
Technical Data
- Frequency: 330 Hz
- Sound Pressure Level (1m):
Total: 148 dB
1/3 octave IMO limit: 138 dB - Air consumption: 20 – 30 I/s
- Standard with Solenoid Valve TV 88
- Weight: 11,5 kg
- BSH Approval
Electronic Bell and Gong BG 300
The Electronic Bell and Gong system BG 300 is designed for vessels at anchor, particularly in restricted visibility. It complies with the International Regulations for Preventing Collisions at Sea (1972), Rule 33. According to these regulations, vessels 12 meters or longer must have a bell, while vessels over 100 meters must also be equipped with a gong. The gong must produce a tone distinct from the bell, ensuring no confusion between the two sounds. The system delivers a sound pressure level of at least 110 dB at 1 meter, meeting these regulatory requirements.
General Information
The Bell and Gong sound emitters in the BG 300 system are electrodynamic, compact, and aesthetically designed. Their small size provides advantages over other bulky loudspeaker designs, enhancing both functionality and appearance. Modern electronics power the system, with the BG 300 amplifier controlling the sound emitters. The system provides the signal characters required by regulations for “ship aground” and “ship at anchor” situations.
To operate the system, crew members can activate the bell and gong through pushbuttons on the bridge, which connect directly to the BG 300 power amplifier. The recorded and synthesized sounds of real bell and gong instruments ensure the signals have an authentic, distinct tone.
Power Amplifier BG 300
The BG 300 power amplifier incorporates advanced technology, delivering authentic bell and gong sounds. It requires only 24V DC (7A) for operation, with a maximum output power of 2 x 120W. The amplifier is designed for indoor installation and must be protected from water, ensuring long-lasting performance in harsh marine environments.
This efficient, compact system ensures compliance with maritime safety regulations while offering reliable and clear sound signaling for vessels in restricted visibility.
Contact Us for More Information
If you have any questions or require spare parts for your Kockum Sonics system.
Technical Data Sound modules
- Material: ABS plastic with UV inhibitors
Made for roof or wall mounting via stainless steel U-bracket. - Sound pressure level (min.): 110 dB at 1 m
- Temperature range: –30°C to + 60°C
- Weight: ca: 2.3 kg
- Colour: RAL 7035
- Electrical connection: 2 x 1.5 mm2 (shielded)
- Cable outer diameter: Ø 6 – 9 mm
- PN: 20142020
Technical Data Power Amplifier BG 300
- Voltage: 24VDC
- Current, operating: 7 A
- Output power, max 2 x 120W
- Current, standby: <0,5A
- Protection class: IP 31
- Operating ambient temp: -25°C to +50°C
- Dimensions: 271x226x100 mm
- Weight: 3,1 kg
- Colour: RAL5017
- PN: 24801484 supersedes 24530339

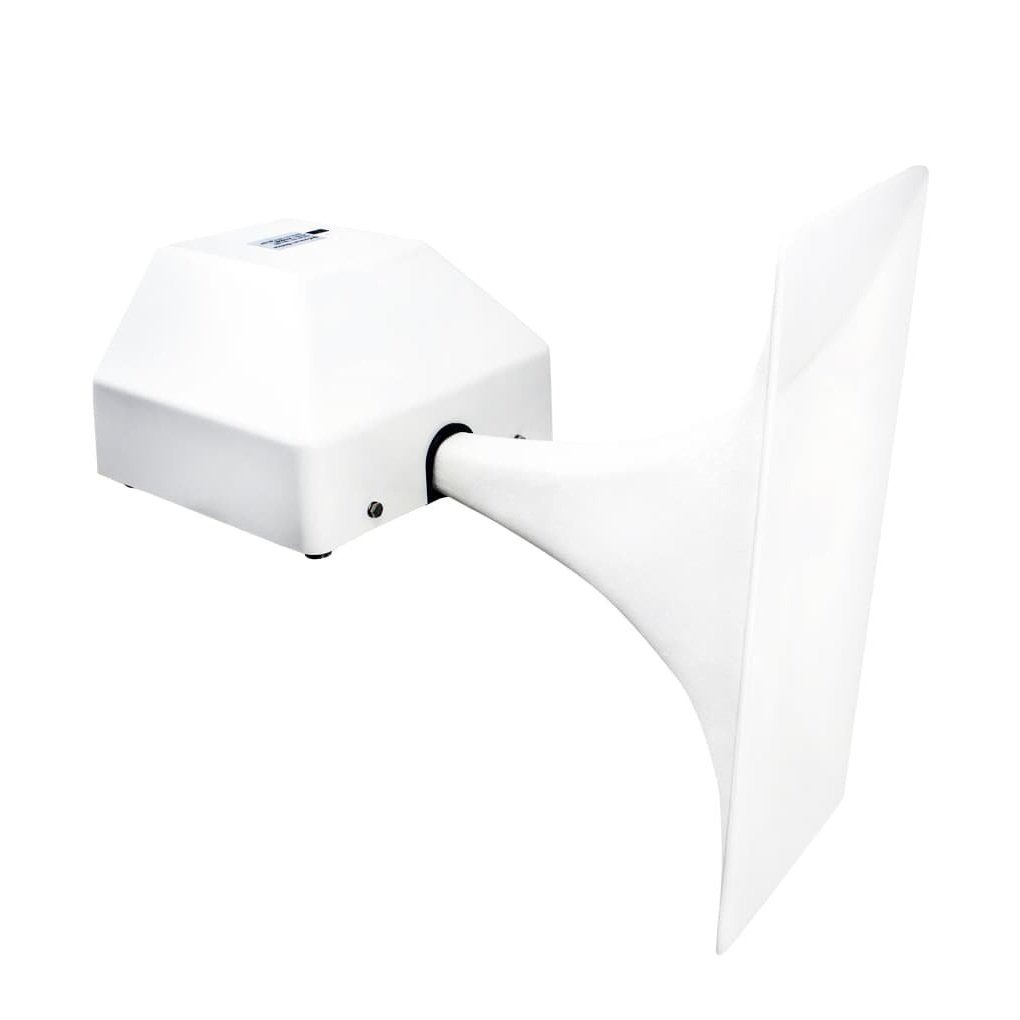

ETD 100/350 electric whistle, suitable for vessels with a LOA 20m till 75m.
A Strong Signal Without Noise
Many who navigate under the IMO Regulations (COLREG 1972) understand the importance of sound pressure levels for efficient signaling. However, the rules also state that “the sound pressure level of the vessel’s own signal at the listening posts shall not exceed 110 dBA and, as far as practicable, should not exceed 100 dBA.” This creates a challenge: how can a vessel emit a strong signal without producing excessive noise onboard?
Solving the Paradox
The common solution to this dilemma is placing the whistle high above deck. But what if even the highest point isn’t high enough? The answer lies in a whistle with unsymmetrical sound distribution. This innovative design offers several benefits:
- Focused Sound Radiation: The total sound is directed towards the horizontal plane, reducing downward (and upward) noise by up to 10 dBA.
- Even Sound Distribution: The sound spreads appropriately in all horizontal directions, ensuring compliance with the headline sound pressure levels prescribed by IMO.
- Optimized Sound Spectrum: This specially designed sound spectrum ensures high electro-acoustic efficiency and rich “tone color,” making the signal more perceptible in noisy environments.
- Durable Design: The horn uses twin-unit electrodynamic drivers protected by non-metallic, glass-fiber reinforced polyester, ensuring durability and long-term performance.
These advancements come together in the TYFON ETD 100/350, a new horn with a vertically extended front that tackles the issue of excessive onboard noise.
Additionally, when a “combined system” of two whistles, as described by the IMO, is employed, an even more effective and significant tone spectrum is produced. An air-driven TYFON for 260 or 440 Hz adds further reliability and top-notch performance.
Contact Us for More Information
If you have any questions or require spare parts for your Kockum Sonics system.
Technical data
- Frequency (basic): 350 Hz
- Sound Pressure Level (1m) Total: 132 dB
- 1/3 octave (IMO limit 130dB): 131 dB
- Power consumption (signal): 250 W
- Power consumption (standby) 5 W
- Heating element: 25 W
- Power source (nominal): 24V DC
Min: 20V DC. Max: 27V DC - Operating ambient temp. (MTK 250): 0… + 50° C
- Protection class: IP64
- Weight (ETD 100/350): 8 kg
- Weight (MTK 250): 3.1 kg
Bell and Gong System
The Electromechanical Bell and Gong system is essential for vessels at anchor or aground, especially in restricted visibility conditions. It fully adheres to the International Regulations for Preventing Collisions at Sea (1972), Rule 33. According to the regulations, vessels 20 meters or longer must have a bell, while those exceeding 100 meters are required to have both a bell and a gong. The Bell KB30 and Gong KG50, equipped with electromagnetic strikers, effectively meet these regulatory requirements.
General Information
Crafted from heavy bronze, the Bell KB30 and Gong KG50 deliver clear, resonant tones, ensuring reliable signaling. Additionally, the system is built with durability in mind, incorporating stainless steel for critical components. Furthermore, an electronic timer controls the system, which is conveniently mounted on the panel. The timer also features an operating switch and three LED indicators to provide easy monitoring of the system’s status.
Moreover, the bell and gong units deliver strong, powerful strokes, contributing to consistent performance. For stable operation, it is essential to securely mount the support structures in a horizontal position using four M10 bolts. Additionally, during signaling, locking the cabinet doors is crucial for maintaining the system’s integrity.
Altogether, this robust system ensures dependable performance and guarantees full compliance with international maritime safety regulations, providing a reliable solution for vessels in challenging marine environments.
Contact Us for More Information
If you have any questions or require spare parts for your Kockum Sonics system.
Technical Data
- Power consumption: 5A at 230V AC or
10A at 115V AC
Starting current factor Is/I = 6.
Heating element: 25W - Sound Pressure Level (min.): 110 dB at 1m
- Dimensions: 310 x 660 x Ø 300mm
- Weight: 34 kg
- Material: Bronze, stainless steel and plastic coated zincified steel
Bell and Gong System
The Electromechanical Bell and Gong system is essential for vessels at anchor or aground, especially in restricted visibility conditions. It fully adheres to the International Regulations for Preventing Collisions at Sea (1972), Rule 33. According to the regulations, vessels 20 meters or longer must have a bell, while those exceeding 100 meters are required to have both a bell and a gong. The Bell KB30 and Gong KG50, equipped with electromagnetic strikers, effectively meet these regulatory requirements.
General Information
Crafted from heavy bronze, the Bell KB30 and Gong KG50 deliver clear, resonant tones, ensuring reliable signaling. Additionally, the system is built with durability in mind, incorporating stainless steel for critical components. Furthermore, an electronic timer controls the system, which is conveniently mounted on the panel. The timer also features an operating switch and three LED indicators to provide easy monitoring of the system’s status.
Moreover, the bell and gong units deliver strong, powerful strokes, contributing to consistent performance. For stable operation, it is essential to securely mount the support structures in a horizontal position using four M10 bolts. Additionally, during signaling, locking the cabinet doors is crucial for maintaining the system’s integrity.
Altogether, this robust system ensures dependable performance and guarantees full compliance with international maritime safety regulations, providing a reliable solution for vessels in challenging marine environments.
Contact Us for More Information
If you have any questions or require spare parts for your Kockum Sonics system.
KTV 75/400 Air whistle, suitable for vessels with a LOA up to 20m.
General Information
The KTV 75/400 signaling apparatus is lightweight, durable, and powerful, making it ideal for (Inland) ships. The KT 75/400 can be used for various applications, including, industrial settings, military use, and heavy vehicles. It is made from high-impact, vibration-resistant plastic resin, with some parts reinforced by glass fiber for extra strength. The design is entirely maintenance-free, and the diaphragm never wears out, ensuring long-lasting reliability.
Mounting and Installation
The valve comes equipped with a filter and complete fittings for both plastic tubing on the outlet side and copper piping (O.D. 8mm or 0.3”) on the inlet side. For optimal performance, avoid outdoor placement unless protected by a cover. Additionally, the short connection between the valve and the signal apparatus should be made from flexible material, such as rubber hose or plastic tubing, for improved durability.
For distinct code signals, keep the pipeline between the whistle and the valve under 6 meters. If placed outdoors, always protect the valve with a cover to prevent exposure to harsh elements. Before connecting the signal apparatus or valve, thoroughly blow the pipe line clean using compressed air to avoid any blockages.
Technical Data
- Frequency: Basic note of 400 Hz, enhanced by power and noise-penetrating harmonics.
- Sound Level: 136 dB(A) measured at 1 meter, equivalent to 120 dB(A) at 6 meters, and 106 dB(A) at 30 meters.
This powerful, efficient system delivers strong signaling with minimal maintenance requirements, making it a versatile solution for various operational needs.
Contact Us for More Information
If you have any questions or require spare parts for your Kockum Sonics system.
Technical Data
- Frequency: Basic note of 400 Hz, enhanced by power and noise-penetrating harmonics.
- Sound Level: 136 dB(A) measured at 1 meter, equivalent to 120 dB(A) at 6 meters, and 106 dB(A) at 30 meters.
- Supply compressed air:
- Working pressure: 0,2 – 0,5 MPa* (2 – 5 bar)* or (29 – 72.5 psi)*
- Air consumption: 5 Nl/sec free air (0.18 cf/sec)
- Weight: 0,34 kg (0.7 lbs) for the whistle alone.
- Whistle Dimensions:
- Length Overall: 375 mm
- Horn Diameter: 125 mm
- Height (Whistle Only): 110 mm
- Additional Specifications
- Inlet Hole (KT 75/400): BSP 1/8
- TV 88 Copper Pipe: OD 8 mm

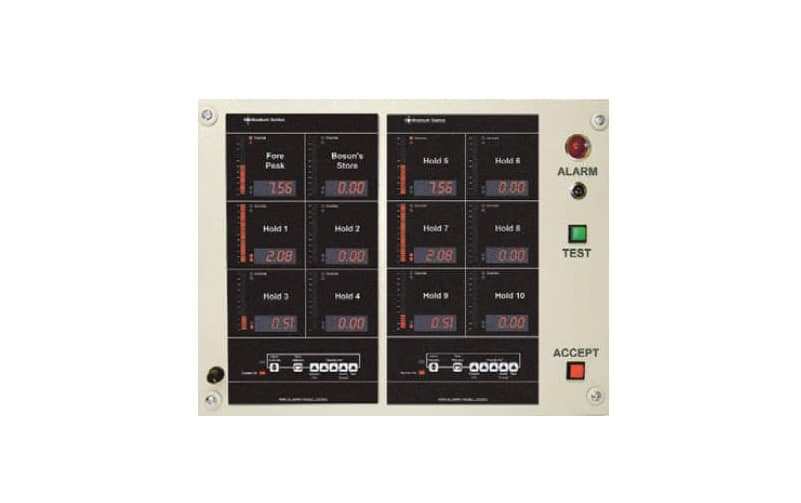

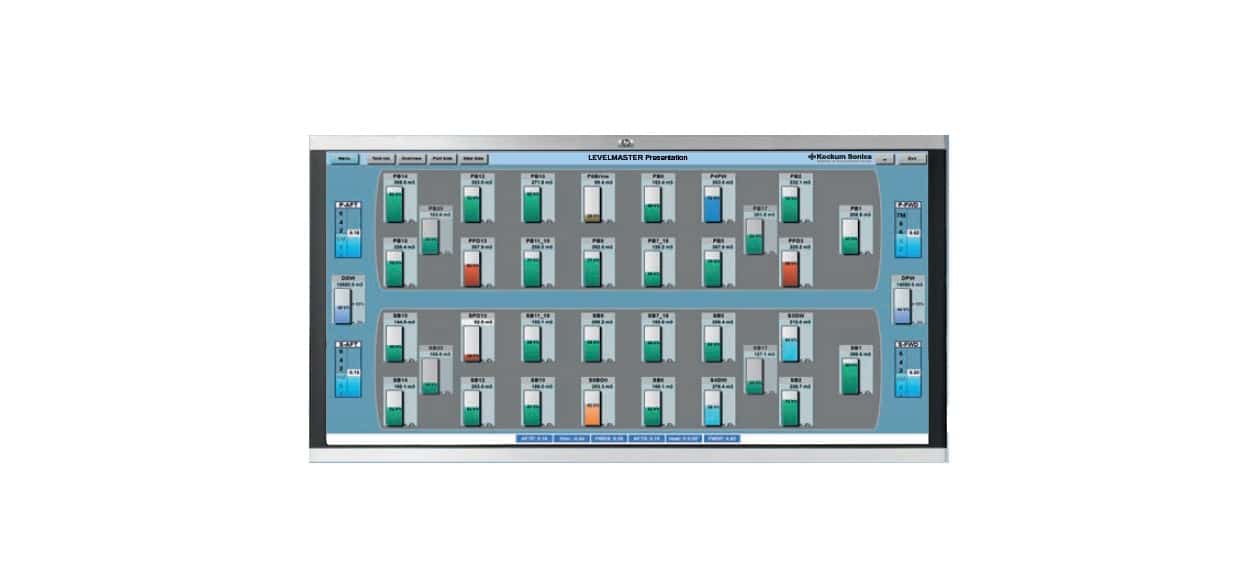

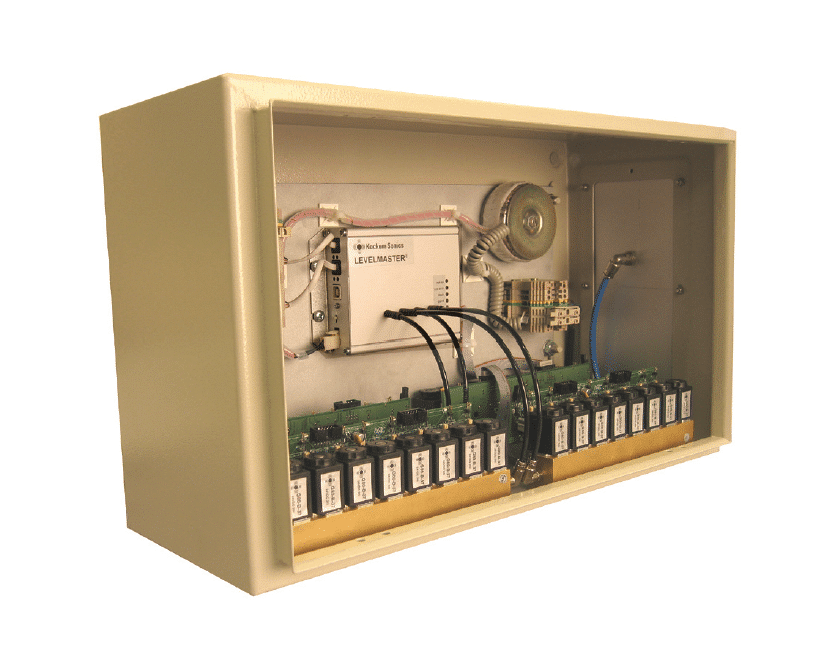

Levelmaster H8: The Next Generation
The Levelmaster H8 is the latest evolution of Kockum Sonics’ renowned CALM system. It uses the well-established electro-pneumatic “bubble measuring” principle, known for its reliability and robustness. Now in its fourth generation, the H8 integrates cutting-edge sensors and microprocessors to deliver a highly efficient, cost-effective level gauging solution.
At the core of the system is the Sensor and Control Unit (SCU), which handles data acquisition, calibration, control, and transmission. Developed by Kockum Sonics specifically for electro-pneumatic tank and draught gauging, the SCU ensures optimal performance. Each pressure sensor undergoes factory calibration for non-linearity and temperature shifts, while automatic calibration during operation maintains long-term system accuracy. Additionally, the SCU adjusts the required air output for each tank, ensuring efficiency.
The system is designed to:
- Simplify operations
- Increase accuracy
- Reduce investment and maintenance costs
Features and Benefits
The Levelmaster H8 introduces advanced technology in a modularized design for easy servicing. Its software driver simplifies integration with other systems and allows remote diagnostics via any connected computer using a standard TCP/IP network. The system offers several key features:
- 24 measuring points in one cabinet
- High accuracy with automatic calibration
- Adaptive level sensing for precise air output control
- Automatic purge to maintain sensor integrity
- High update speed for real-time data
- Low air consumption and maintenance-free operation
- Small dimensions and easy installation
- No electrical parts in hazardous (EX) zones, enhancing safety
- Low investment costs
Measuring Principle
The Levelmaster H8 employs the electro-pneumatic principle, a proven method that reduces both installation and maintenance costs. Each pressure transmitter measures the hydrostatic pressure for multiple tanks, handling up to six tanks per transmitter. The Digital Flow Controller optimizes airflow by adjusting the main valve’s duty cycle, further improving efficiency.
Pre-calibrated at the factory, the SCU automatically adjusts during operation to maintain its high accuracy, ensuring the system operates reliably throughout its life cycle.
Contact Us for More Information
If you have any questions or require spare parts for your Kockum Sonics system.
COMMON SPARE PARTS:
Kockum Sonics PN |
Description |
| 24720036 | Air treatmet unit – complete |
| 24801182 | Block position A (From 2020) |
| 24721075 | Block position A (Till 2020) |
| 24801183 | Block position B (From 2020) |
| 24721076 | Block position B (Till 2020) |
| 24801184 | Block position C (From 2020) |
| 24721077 | Block position C (Till 2020) |
| 24801185 | Block position D (From 2020) |
| 24721078 | Block position D (Till 2020) |
| 24801187 | Complete Spare part kit for Levelmaster H8 (From 2020) |
| 24720111 | Complete Spare part kit for Levelmaster H8 (Till 2020) |
| 20700007 | Flat cable kit, 4 pcs |
| 20556108 | Fuses 1.25 A, slow blow |
| 24801186 | General block which fits all positions (From 2020) |
| 24721079 | General block which fits in all positions (Till 2020) |
| 27000004 | Levelmaster® H8, Sensor and control unit, SCU |
| 20864506 | Overpressure safety valve |
| 24721205 | Power transformer including filter and cables |
| 20630040 | Service kit for air filters |
| 24721085 | Solenoid Valve (Till 2020) |
| 20882489 | Solenoid valve complete with coil (From 2020) |
| 20882465 | Solenoid valve operator (From 2020) |
| 20400150 | Solenoid valve operator (Till 2020) |
| 20633041 | Valve circuit board |
Send your inquiry to info@venteville.com
Levelmaster Presentation Software and Hardware
Levelmaster® Workstation
The LEVELMASTER® workstation is Kockum Sonics’ most advanced and flexible level presentation software. It operates seamlessly within the ‘Master-concept’ environment or can integrate with nearly any third-party system. This versatile program allows users to view comprehensive tank data, including volume, level, flow, temperature, IG pressure, and full trim and heel correction. Additionally, users can customize the interface as needed and perform full on-screen sensor calibration. Levelmaster Presentation
Levelmaster® Panel PC
The LEVELMASTER® Panel PC is designed to replace traditional dial gauges, displaying unlimited tank information. It adds features like adjustable alarm limits and density input. Ideal for cargo or engine room control consoles, the program is easy to operate via touch screen or mouse/keyboard. The panel PC comes in sizes ranging from 8” to 19” with various mounting options, including console and wall mounts. A type-approved panel PC for bridge mounting is also available.
Additional Display Units
DU350
The DU350 comes in two versions: one for tank presentation and another for draught data. The tank version displays level (in units or percentage), with up to four alarm limits (L/LL/H/HH), and can optionally show volume. The draught version calculates and displays readings (forward, aft, mid-port, and mid-starboard) and provides trim and heel values. Both versions support manual density adjustment for more precise measurements.
H8 Utility Software
The H8 utility software, distributed free with LEVELMASTER® H8 hardware, serves as a valuable service and maintenance tool. It can also be used for basic tank and draught presentation on a local laptop. Users simply input pipe offset and density values for backup level monitoring.
Web Browser Interface
The web interface, built using WPF and Silverlight .NET technologies, offers a secure, flexible way to remotely view tank level and draught status. Silverlight supports browser-based clients, providing essential features with minimal software requirements.
Contact Us for More Information
If you have any questions or require spare parts for your Kockum Sonics system.
LEVELMASTER® WIM – Water Ingress Monitoring
SOLAS XII/12 Compliance for Bulk Carriers
For over 30 years, Kockum Sonics has delivered reliable marine level technology through its LEVELMASTER® system. In response to SOLAS XII/12 regulations, we introduced the LEVELMASTER WIM (Water Ingress Monitoring) solution. Based on the well-established LEVELMASTER® CALM system, WIM uses accurate electro-pneumatic measurement, eliminating the need for electrical components in the holds. This design reduces both installation and operational costs significantly. Furthermore, the system is type-approved by leading classification societies such as DNV, LRS, ABS, and BV.
Key Features and Benefits
Each hold, tank, or compartment connects to a central LEVELMASTER® CALM cabinet using a single sensing pipe. The cabinet houses all electrical components and hydrostatic sensors, eliminating the need for costly zener barriers or cable junction boxes. Sensing lines are made of durable polyamide tubing or optional stainless steel, making them cost-effective and easy to install.
The system automatically self-calibrates every 24 hours to ensure consistent accuracy. In case of solid ingress into the tube, an automatic air purge function activates. Importantly, there are no electrical sensors in the cargo holds, only a simple sensing tube. Additionally, the system can convert any sounding pipe into a sensing tube with a special valve unit adapter, while air consumption remains minimal.
Continuous Level Measurement and Alarms
The LEVELMASTER WIM provides real-time level information, helping the Master determine whether an alarm is an actual scenario or a false alarm. Unlike limit switch systems, which might only indicate 500mm of water in the hold, WIM can show whether the water level has reached a critical depth, such as 1900mm.
The DU350 WIM alarm panel complies with IMO specifications and can be either console or bulkhead mounted. We also offer serial outputs to interface with ship stability and cargo planning software like LOADMASTER®.
Contact Us for More Information
If you have any questions or require spare parts for your Kockum Sonics system.
Kockum Sonics Loading Computer: LOADMASTER® X5
For decades, Kockum Sonics’ software engineers have developed and refined the industry-renowned LOADMASTER ® loading computer, now in its X5 version. This long-term commitment to research and development has fostered a unique knowledge base and capability. Additionally, Kockum Sonics acquired two high-quality Danish loading computer programs, Easeacon and Loadstar, enhancing our offerings. As a result, we have established a reference list of over 12,000 deliveries. Our clientele includes some of the world’s largest container and car carrier owners.
User-Friendly Interface
Today, the Kockumation loading programs feature an interface that stands out for its user-friendliness. We designed it to be simple enough for inexperienced users while still offering a comprehensive range of powerful features for seasoned professionals. With a Kockumation loading program, you gain access to the most powerful and versatile cargo planning and stability applications available.
Compliance and Cargo Planning in One
Every LOADMASTER, LOADSTAR, and EASEACON delivered includes a core base module packed with calculative tools. These tools fulfill the mandatory stability and stress requirements imposed by maritime authorities. Thus, even though we call it the ‘Base’ module, ship owners, yards, and technical managers can trust that our programs ensure compliance and best practices without diverting critical resources.
Moreover, the base module offers flexibility to incorporate additional ship-specific tools. For instance, bulk carriers benefit from automatic checks against flooded holds in compliance with regulations. This capability further enhances the utility of our programs, ensuring you have everything needed for effective cargo planning and stability management in one solution. With Kockum Sonics, you receive unparalleled support in navigating the complexities of maritime operations.
Contact Us for More Information
If you have any questions or require spare parts for your Kockum Sonics system.
MKT 150/110 air whistle, suitable for vessels with a LOA > 200m
Regulations Before and After COLREG 1972
Before “COLREG 1972” (International Regulations for Preventing Collisions at Sea), low-pitched tones were often used for smaller vessels. However, the principle of reserving low tones for large vessels was not strictly enforced. The IMO regulations now reserve very low tones exclusively for the largest ships. For middle-sized and smaller vessels, there are broader frequency options available.
Signal Preferences and Frequency Range
IMO regulations prioritize signals that maintain audibility even at a distance. Vessels over 200 meters (656 feet) should use whistles with frequencies of 130 Hz or lower. These frequencies ensure effective communication and compliance with maritime safety standards.
Installation Instructions for MKT 150/110
Mounting the MKT 150/110
Secure the MKT 150/110 whistle with four M12 bolts to an outrigger or similar construction. Ensure the structure is stable to prevent any operational issues.
Cleaning the Supply Pipe
Before connecting the supply pipe to the whistle, blow the pipe thoroughly clean. This step is crucial to avoid any functional troubles caused by debris or contaminants in the pipe.
Installing a Primary Filter
If the pipeline above deck exceeds 100 meters (328 feet), install a primary FILTER TP 15/2 at the base of the mast. This filter protects the whistle from water condensate and rust particles, ensuring reliable operation.
Maintaining the Filter
Regular maintenance is essential for ensuring optimal performance. To begin with, it is recommended to drain the filter approximately once a month. By doing so, you can effectively prevent blockages while also maintaining the integrity of the signaling system.
Valve Unit Specifications
The VALVE UNIT TV 784 is designed for efficient air flow, featuring thermostatic heating, exchangeable choke flanges, and filters. It includes two coils for normal and emergency operation, as well as a lanyard, providing reliable functionality.
Contact Us for More Information
If you have any questions or require spare parts for your Kockum Sonics system.
Technical Data
- Frequency: 110 Hz
- Sound Pressure Level (1m):
Total: 149 dB
1/3 octave IMO limit: 143 dB - Air consumption: 60-70 I/s
- Air supply pressure: 0,6—3 MPa (6—30 bar)
Please state the working pressure when order. - Electric power:
Thermostat heating: 24 W
Valve: 27 W - Weight: 52 kg
- For wiring diagram: see Valve Unit TV 784
